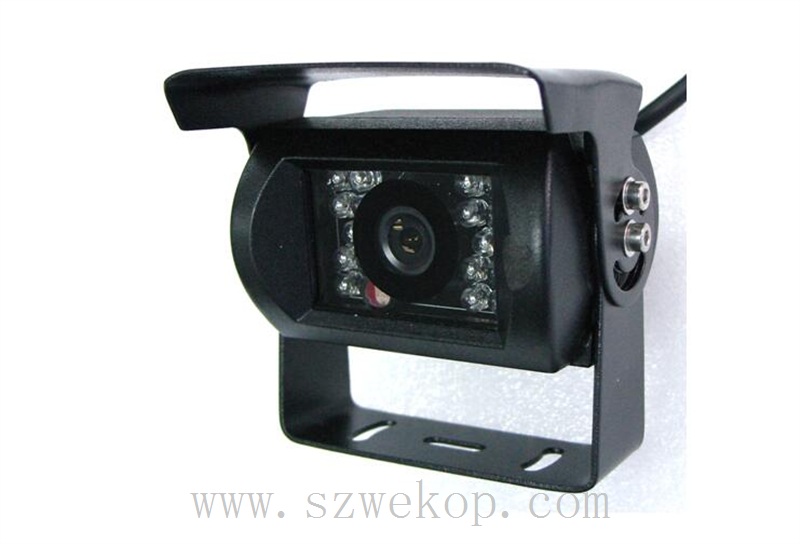

Vehicle CCTV Camera Rear-View HD-AHD 720P/960P/1080P Waterproof IP67 IR Wide viewing
WP-AHD720P-RV
Click to View PDF Product Datasheet:
Features :
◆High quality AHD camera Technology
◆ The infrared distance 10 meters;
◆ Equipped with 3.6 mm lens;
◆Double glass design to prevent reflection;
◆ Automatic infra red night vision(B&W);
◆ IP67 Waterproof & Vandalproof;
◆ Heating and anti fog;Wide Viewing Angle
◆ Support 12V DC ±10%,Low power consumption Max.3W
Specifications:
Model |
WP-AHD720P-RV |
| Pick up Device | 1/3” CMOS 960p ,1080p,730p optional |
| TV System | PAL/NTSC optional |
| Picture Elements | 752Hx582V |
| Horizontal Resolution | 1.0 Mega,1.3 Mega,2.0 Mega |
| Sensitivity | 0 Lux at F1.2 (Infrared LED On) |
| Scanning System | 625TVL |
| 2:1 Interlace | |
| Interface | Aviation,4PIN Interface Optional |
| Infrared Spectrum | Internal |
| S/N Ratio | 850nm |
| Auto Gain Control (AGC) | More than 50 dB, (AGC Off) |
| White Balance | Auto |
| Electronic Shutter | Auto |
| Back Light Compensation | Auto |
| Infrared LED | Auto |
| Infrared LED Range | 18 LEDs |
| Video Output | 10m |
| Mirror | 1 Vp-p, 75Ωcomposite , BNC x1 |
| Gamma Ratio | N/A |
| Auto-iris Lens Control | 0.45 |
| Lens | N/A |
| Exterior Focus Adjustment | f3.6mm Standard Lens 2.8,6,0.8mm optional |
| Lens Mount | N/A |
| Pan Adjusting | M12XP0.5mm Thread |
| Tilt Adjusting | N/A |
| Power Supply | 0-90° |
| Input Power | 12V DC ±10%, ø 2.1mm DC Jack |
| Power Consumption | 260mA |
| Dimensions | W75 x H78 x D69 mm |
| Net Weight | 286g |
| Weatherproof/Water Proof | IP67 |
| Operating Temperature | -10°C to +50°C |
*Specifications are subject to change without prior notice
Cautions:
- In order to protect the camera, please avoid placing or using the camera under direct sunlight.
- Please ensure that the input voltage range is within the specifications.
- Please do not place the camera in a location with a temperature exceeding 50ºC.
- Do not attempt to service the camera by yourself. Please refer all services to qualified Dealers.
- In order to avoid water leaking into the microphone, don’t move the waterproof film on the front cover.
Operation procedures:
- Loosen the lock screws on the sun shield, remove the mounting bracket to the suitable position.
- Attach the mounting bracket to the wall or ceiling, wherever you want to install the camera. Locate a wall stud or ceiling joint and secure the base by the supplied mounting screws.
- Connect the BNC to the monitor
- Connect the DC jack to 12VDC power source, when picture shown up on the monitor.
- Connect the white RCA Jack to audio input of the system.
- Fix the lock screw.
Packing list:
Camera 1
Instruction Manual 1
Self Drilling Screw 2
Mounting Plug 2
Hey-key 1
Optional Lens selectable from f2.8mm to f12mm

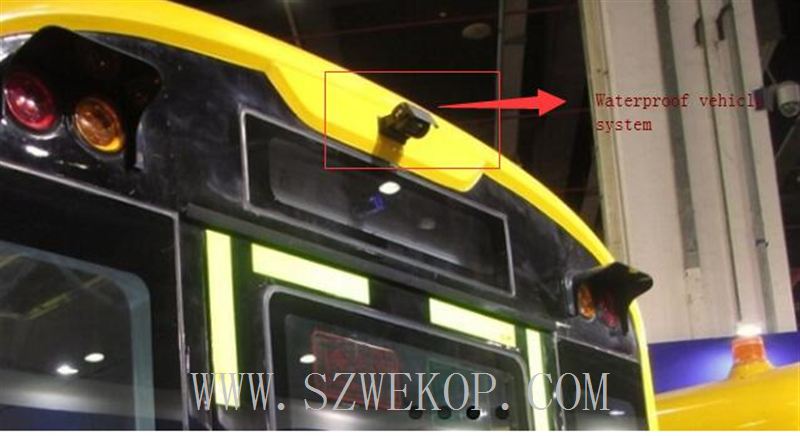

Application :

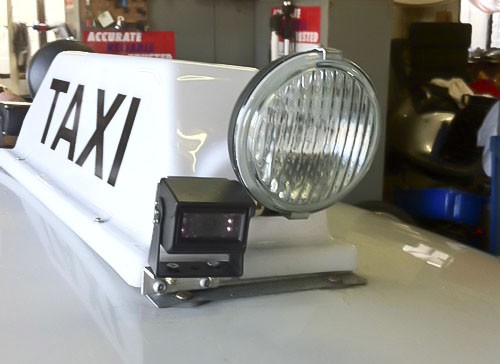

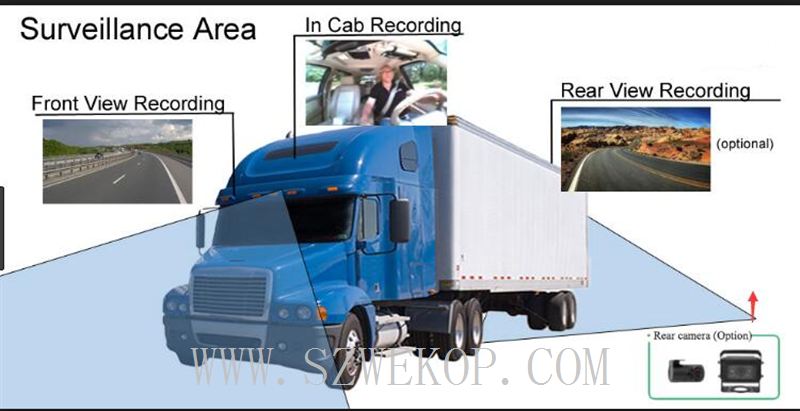

Other Vehicles Application :
