Vehicle Mini Dome Camera Metal HD AHD 720P/960P/ IR Waterproof Audio for Car/Bus/Truck/Cab/Taxi
Click to View PDF Product Datasheet:

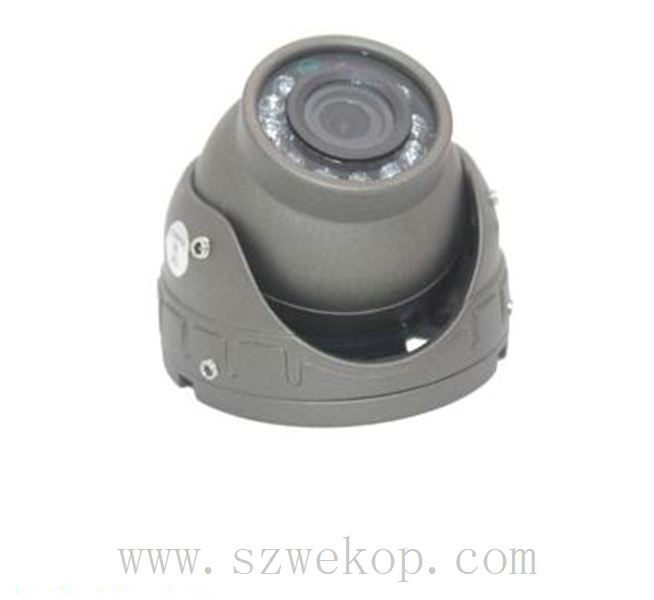

Vehicle Metal Dome Camera
Model No.: WP-AHD720P-DM
- 1/2.9” Aptina 0130 with Nextchip2431 960P
- Metal-cased mini housing with standard fixed lens;
- High Quality,High Hardness,Anti-Collision
- Support IR function,infrared LED range 10~15m;
- Easy installation ;3.6 / 2.8 mm lens optional;
- Support 12V DC ±10%,Low power consumption;
Specification
| Model | WP-AHD720P-DM |
| Sensor | 1/3〃1.3M pixel CMOS |
| Resolution | 720P |
| Format | NTSC/PAL |
| Minimum illumination | 0 Lux F1.2 |
| IR distance | 10m |
| Sync system | Internal synchronously |
| S/N | ≥50dB |
| Lens | 3.6mm default (2.8mm optional) |
| Electronic shutter | Auto |
| White balance mode | Auto |
| Color to black | External synchronously control |
| Gamma Correction | 0.45 (default) |
| Video output | AHD standard output, 4-pin aviation cable |
| Power | 12V DC ± 10% |
| Consumption(Max.) | 180mA/DC12V ±5% |
| Working temperature | -40°C ~ 70°C |
| Weight | 205g |
| Dimension | Φ69mm*55.5mm |
Application:
